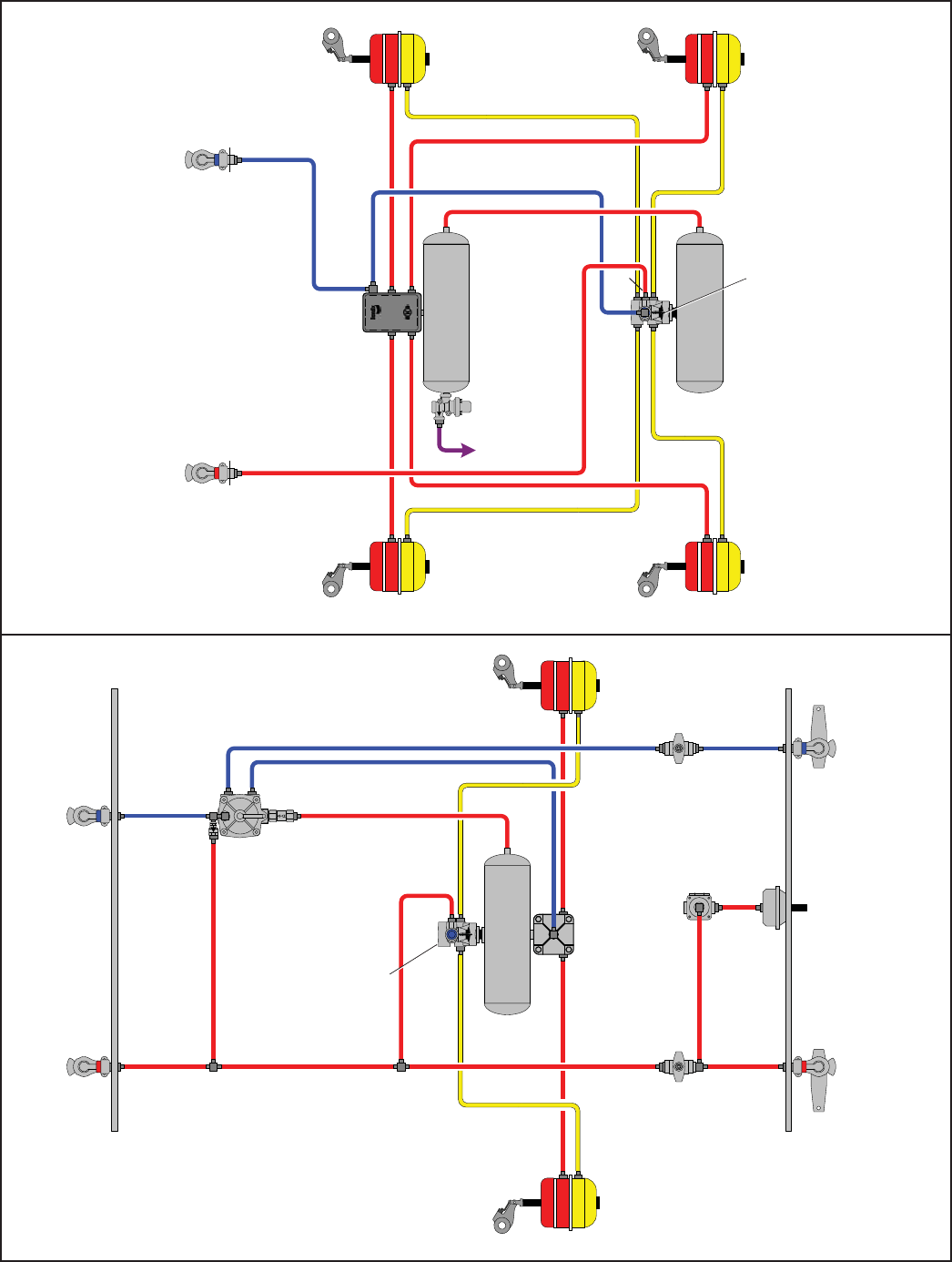

FIGURE 2 - TYPICAL SYSTEM SCHEMATICS WITH A BENDIX

®

SRC-7000

™

TRAILER SPRING BRAKE VALVE

SRC-7000

™

VALVE

TRAILER

SUPPLY

TRAILER

SERVICE

Trailer Schematic

Towing Trailer Schematic

SER EM

TO

ACCESSORIES

SER EM

SER EMSER EM

D

D

D

D

D

S

C

C

D

D

D

SER EM

SER EM

D

D

C

S

C

SRC-7000

™

VALVE

TRAILER

SUPPLY

TRAILER

SERVICE

SERVICE

RELAY

VALVE

SERVICE

BRAKE

CHAMBER

QUICK

RELEASE

DUMMY

COUPLING

DUMMY

COUPLING

C-5

™

CUT-OUT

COCK

C-5

™

CUT-OUT

COCK

R-12P

™

PILOT

RELAY

VALVE

1 2 3 4 5 6
