• Pigtail Wiring Harness: A power pigtail harness is

required.Auxiliaryharnessesareavailable,asneeded.

See Figure 6.

• Lift Axle Sensing: Ifatrailerisequippedwithaliftaxle,

thenliftaxlesensingmustbeused,unlesscongured

for automatic lift axle control (see below). A pressure

threshold switch must be installed in the lift bag for the

liftaxleandconnectedtotheECU.TheECUcanthen

monitor the position of the lift axle and will compensate

correctly for the load transfer to the other axle(s) when

the lift axle is raised.

• Lift Axle Control: The Bendix

TABS‑6

™

Adv MC can

be congured to automatically raise (and lower) lift

axle(s)whenapre-conguredloadissensed.

• Load Sensor: Ifatrailerisequippedwithanexternal

electrical spring deection sensor, See Figure 3, a

linkage is attached to an axle (but must not be installed

onaliftaxle)—within5(ve)inchesofthecenterof

the axle — connects to a load sensor attached to the

chassis of the vehicle. The output from the sensor is

an electrical signal that is proportional to the spring

Pigtail Harness

6-pin Auxiliary

Pigtail Harness

6-pin Auxiliary

12-Pin

ECU

Connector

12-Pin

ECU

Connector

12-Pin

ECU

Connector

12-Pin ECU Connector

4-Pin SAE J1939 (CAN)

(Diagnostic)

4-Pin SAE J1939 (CAN)

(Diagnostic)

4-Pin SAE J1939 (CAN)

(Diagnostic)

4-Pin Sensor

Harness

4-Pin Sensor

Harness

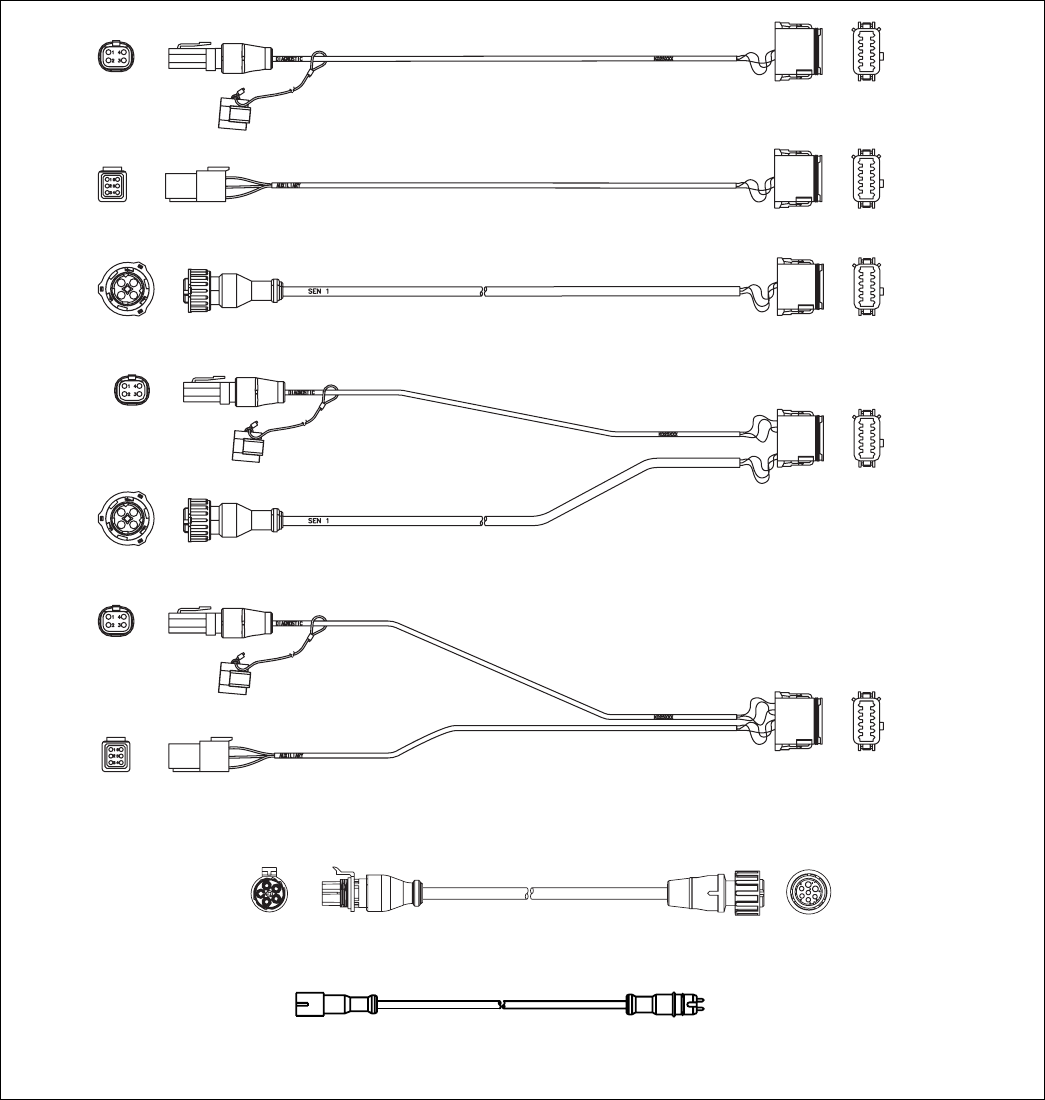

FIGURE 6 ‑ EXAMPLES OF PIGTAIL WIRE HARNESSES

To ECU

To WS-24

™

Wheel

Speed Sensor

Wheel Speed Sensor

Extension Harness

(6000365)

(Harness - K025594)

(Harness - K048988)

(Harness - K048989)

(Harness - K027758)

(Harness - K025593)

X1 Power Harness (K022146)

5-Pin Power and

Indicator

Lamp (POWER/

Indicator Lamp)

7-Pin ECU Connector

1 2 3 4 5 6 7 8 9 10 11 ... 39 40
